ShockRite SRB20 0.2J Energiser

ShockRite SRB20 12V Battery Energiser

ShockRite SRB20 0.2J 12V Battery-Powered Electric Fence Energiser is ideal for Strip Grazing Cattle or Horses, Using With Smaller Animals Like Cats and Dogs, as well as Short Runs.

Quick Overview

• • 0.2J Power Energiser
  • Low Average Current Draw of 25mA
  • Made for Permanent Outdoor Use – No Rain Protection Required (& Frost-Resistant)
  • Pulse Current Technology
  • 3 Year Warranty
  • No Experience Needed to Set Up & Use
  • Low Battery Indicator Warning
  • Powers Fence Length up to:
    • 1km of Wire/Tape

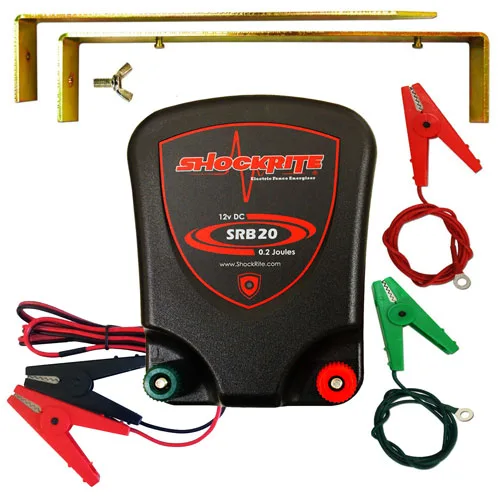

Contents

ShockRite SRB20 12-Volt Battery-Powered Energiser (Battery Not Included)
2 x Connection Cables (1 x Green Earth Connection Cable, 1 x Red Fence Connection Cable)
Earth Stake/Grounding Rod
Assembly and Instruction Manual

Full Details

• Lightweight energiser. Shipping weight = 1.8kg (box and contents as listed above)
• The Battery Indicator makes it easy to read the battery status and understand what is happening with the electric fencing. The indicator is green when there is a good charge in the battery, and changes to red when the battery begins to run low.
• The green light flashes every 1.5 seconds when the battery is at a healthy charge.  If the battery drops below the healthy range the unit will start to flash red every 2 seconds to indicate that the battery needs to be charged.
• Special weatherproof membrane protects the on/off switch from the rain

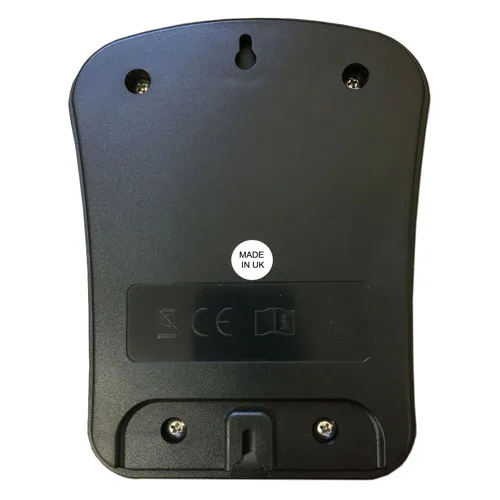

• Energiser can be mounted to the earth stake using the assembly screw provided.  This creates a compact, tidy set up, and keeps the energiser raised  from the wet/muddy ground
• Built-in Lightning Protection
• Internal Radio Frequency Interference Suppression
• CE & RoHS Certified
• Top-Quality and Made in the UK

Technical Specifications

Input

Power Supply: 12V DC (To Run from Car/Leisure Battery – Not Included)
Maximum Current: 25mA

Output

Open Volts: 8,500V
500 Ohm Load Volts: 4,500V
Power Output at 500 Ohms: 0.2J
Stored Energy: 0.25J
Effective Length Using Polywire or Polytape: 1km (no veg)
Effective Length Using Galvanised Wire: 2.5km
Not Suitable For Electric Fence Netting

Energiser Body Dimensions: 175 x 135 x 60mm

This ShockRite Electric Fence Energiser Comparison Chart is an overview of all ShockRite energisers in one place. It may make it easier to decide what energisers suit your requirements
